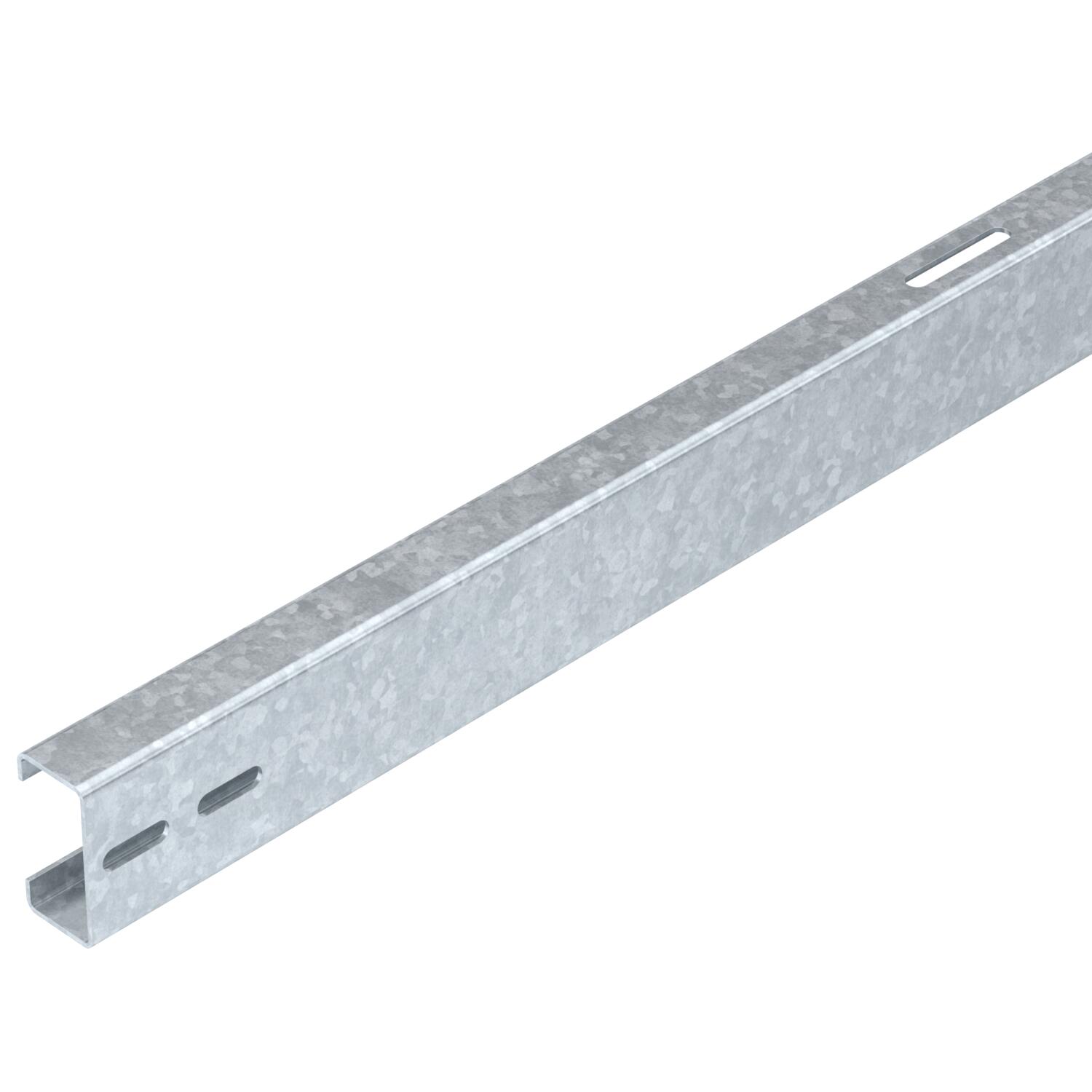

Support profile for PV module mounting, free-standing system

Кат. № 5900502 | Електронен артикулен номер (EAN) 4012197396848

Кат. № / Тип

Дължина

Описание на продукта

Описание на продукта

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.

Технически данни

Технически данни

Вграден кабелен канал	не
Кабелен канал по избор	не
Материал	Стомана
Модулна ширина макс.	1010 mm
Модулна ширина мин.	1000 mm
Повърхност	Горещо поцинкованe чрез потапяне

Продуктова серия	Magic PV Field
Размери	40x80x5705
Съпротивителен момент Wx	10600 mm³
Съпротивителен момент Wy	5200 mm³
Цвят	цвят цинк

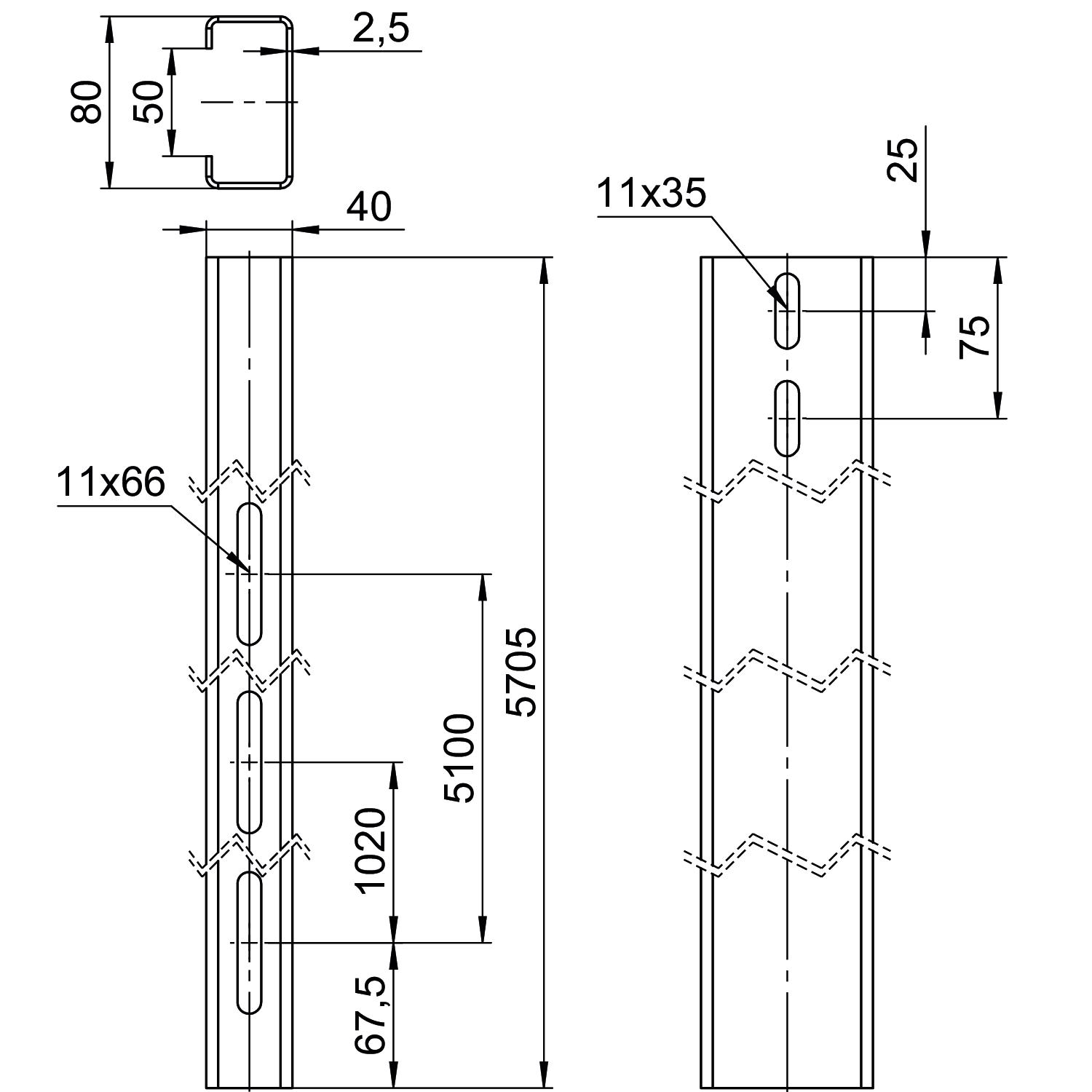

Размери

Височина	80 mm
Дължина	5705 mm

Ширина	40 mm

Въглероден отпечатък CO2 (Product Carbon Footprint)

CO2 отпечатък (GWP) от люлка до портата	39,2611 кг CO2e / 1 брой
CO₂ Footprint (GWP)	39,2611 kg CO₂e
Declared Unit	Units

Declared Unit Quantity	1
Determination date of CO2 value	2025-05-21T00:00:00.000+0200

Всички типове

Всички типове

Тип	Дължина	Кат. №	Количество	мин. VKE
TP 1000 FT	5650 mm	5900500	Брой	1 Брой
TP 1010 FT	5705 mm	5900502	Брой	1 Брой
TP 1020 FT	5760 mm	5900504	Брой	1 Брой
TP 1030 FT	5815 mm	5900506	Брой	1 Брой
TP 1040 FT	5780 mm	5900508	Брой	1 Брой
TP 1060 FT	5980 mm	5900512	Брой	1 Брой
TP 1100 FT	5090 mm	5900520	Брой	1 Брой
TP 1140 FT	5270 mm	5900522	Брой	1 Брой
TP 1310 FT	6035 mm	5900530	Брой	1 Брой

Принадлежности

Системни принадлежности

Продукти	Тип	Кат. №	Количество	мин. VKE
Pre-mounted supports for PV module mounting, free-standing system	VT 10S FT	5901550	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 10M FT	5901552	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 10L FT	5901554	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 25S FT	5901556	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 25M FT	5901558	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 25L FT	5901560	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 30S FT	5901562	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 30M FT	5901564	Брой	1 Брой
Pre-mounted supports for PV module mounting, free-standing system	VT 30L FT	5901566	Брой	1 Брой
Straight connector for support profiles, free-standing system	LV FT	5901215	Брой	20 Брой
Cross-connector for TP support profiles, free-standing system	KV FT	5901255	Брой	50 Брой
Intermediate clamp for PV module mounting, free-standing system	KLZ 2030 A2	5901050	Брой	50 Брой
Intermediate clamp for PV module mounting, free-standing system	KLZ 3040 A2	5901054	Брой	50 Брой
Intermediate clamp for PV module mounting, free-standing system	KLZ 4050 A2	5901058	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 20 A2	5901070	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 25 A2	5901072	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 30 A2	5901074	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 35 A2	5901076	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 40 A2	5901078	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 45 A2	5901080	Брой	50 Брой
End clamp for PV module mounting, free-standing system	KLE 50 A2	5901082	Брой	50 Брой
Intermediate clamp with spring for PV module mounting	KLZ F 25 A2	5901062	Брой	50 Брой
Intermediate clamp with spring for PV module mounting	KLZ F 30 A2	5901063	Брой	50 Брой
Intermediate clamp with spring for PV module mounting	KLZ F 35 A2	5901064	Брой	50 Брой
Intermediate clamp with spring for PV module mounting	KLZ F 40 A2	5901065	Брой	50 Брой
End clamp with spring for PV module mounting	KLE F 25 A2	5901092	Брой	50 Брой
End clamp with spring for PV module mounting	KLE F 30 A2	5901093	Брой	50 Брой
End clamp with spring for PV module mounting	KLE F 35 A2	5901094	Брой	50 Брой
End clamp with spring for PV module mounting	KLE F 40 A2	5901095	Брой	50 Брой
